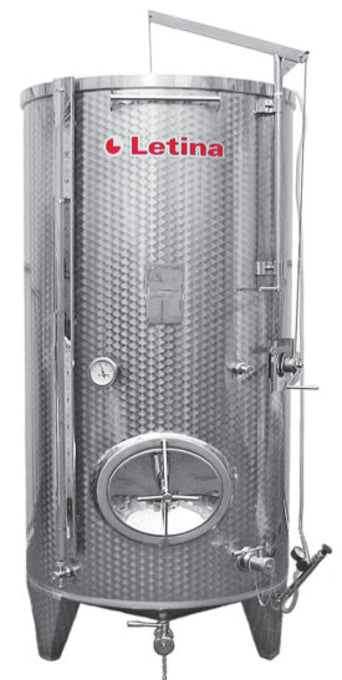

PZP TANK: tank with air cap

TANK WITH AIR CAP is used for fermentation and storage of wine and other alimentary liquids. The robust cap with air tube and relief valve enables fermentation and the storage. Extra reinforced edge of the tank contributes to the tankÕs firmness. By using a lifting arm, the cap can easily be moved up and down and the pump attached on a leg will help to pump up easier the air tube.

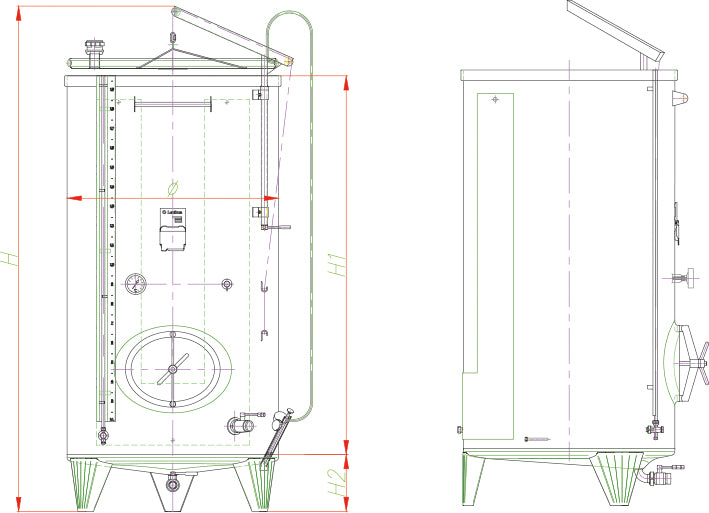

TANK TYPE	VOLUME	Ø	H	H1	H2
PZP320A6	320 lit	638	1300	1000	300
PZP400A6	400 lit	638	1550	1250	300
PZP480A6	480 lit	638	1800	1500	300
PZP420A7	420 lit	731	1300	1000	300
PZP530A7	530 lit	731	1550	1250	300
PZP630A7	630 lit	731	1800	1500	300
PZP500A8	500 lit	797	1300	1000	300
PZP630A8	630 lit	797	1550	1250	300
PZP750A8	750 lit	797	1800	1500	300
PZP900A10	900 lit	956	1550	1250	300
PZP1100A10	1100 lit	956	2150	1500	300
PZP1400A10	1400 lit	956	2650	2000	300
PZP1200A11	1200 lit	1116	1550	1250	300
PZP1500A11	1500 lit	1116	2220	1500	300
PZP2000A11	2000 lit	1116	2700	2000	300
PZP1900A13	1900 lit	1275	2350	1500	400
PZP2500A13	2500 lit	1275	2850	2000	400
PZP3200A13	3200 lit	1275	3350	2500	400
PZP2300A14	2300 lit	1402	2350	1500	400
PZP3100A14	3100 lit	1402	2850	2000	400
PZP3900A14	3900 lit	1402	3350	2500	400
PZP4000A16	4000 lit	1593	2900	2000	400
PZP5000A16	5000 lit	1593	3400	2500	400
PZP6000A16	6000 lit	1593	3900	3000	400
PZP4900A18	4900 lit	1752	2950	2000	400
PZP6100A18	6100 lit	1752	3450	2500	400
PZP7300A18	7300 lit	1752	3950	3000	400
PZP7300A19	7300 lit	1911	3600	2500	500
PZP8700A19	8700 lit	1911	4100	3000	500
PZP11600A19	11600 lit	1911	5100	4000	500
PZP8600A21	8600 lit	2071	3600	2500	500
PZP10200A21	10200 lit	2071	4100	3000	500
PZP13600A21	13600 lit	2071	5100	4000	500
PZP11900A22	11900 lit	2230	3500	3000	500
PZP15800A22	15800 lit	2230	4500	4000	500
PZP19700A22	19700 lit	2230	5500	5000	500
PZP15000A25	15000 lit	2501	3500	3000	500
PZP19900A25	19900 lit	2501	4500	4000	500
PZP24800A25	24800 lit	2501	5500	5000	500
