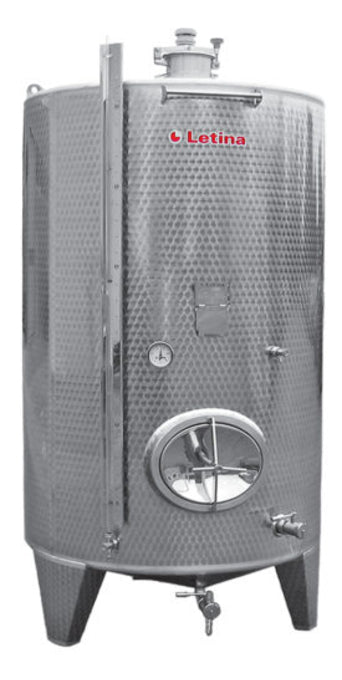

Z TANK: closed tank

CLOSED TANK is used for fermentation and storage of wine and other alimentary liquids. High quality materials with big thickness ensure stability during a long professional usage of the tank. High polished tankÕs inside do not allow deposition of wine scale and ease the cleaning of the tank. Thanks to the vertical construction of the cooling jacket, cooling process will be efficient even if the tank is not totally full. Volume: 500 lit Diameter: 797 H: 1611 H1: 1000 H2: 300 D: 1560

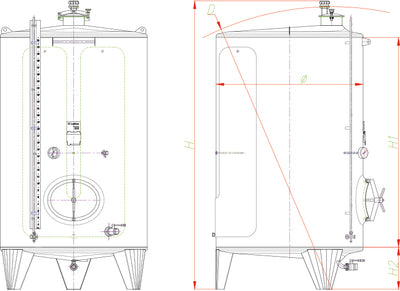

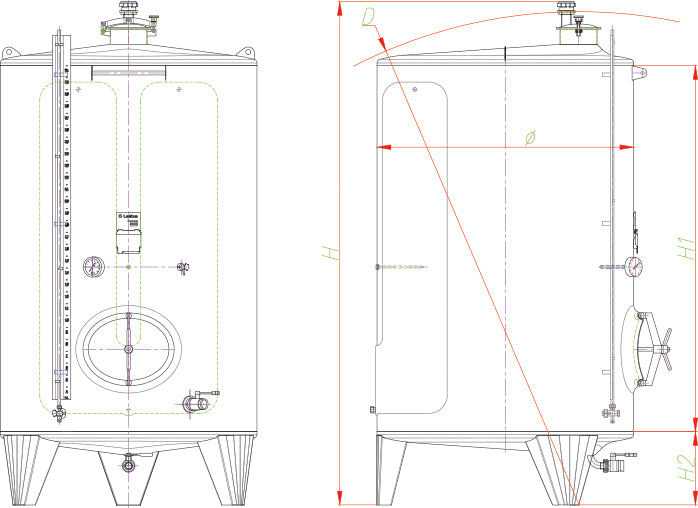

TANK TYPE	VOLUME	Ø	H	H1	H2	D
Z500A8	500 lit	797	1611	1000	300	1560
Z600A8	600 lit	797	1861	1250	300	1810
Z750A8	750 lit	797	2111	1500	300	2060
Z1000A8	1000 lit	797	2611	2000	300	2560
Z1250A8	1250 lit	797	3111	2500	300	3060
Z1500A8	1500 lit	797	3611	3000	300	3560
Z750A10	750 lit	956	1622	1000	300	1570
Z900A10	900 lit	956	1872	1250	300	1820
Z1040A10	1040 lit	956	2022	1400	300	1970
Z1100A10	1100 lit	956	2122	1500	300	2070
Z1450A10	1450 lit	956	2622	2000	300	2570
Z1800A10	1800 lit	956	3122	2500	300	3070
Z2150A10	2150 lit	956	3622	3000	300	3570
Z1250A11	1250 lit	1116	1884	1250	300	1830
Z1500A11	1500 lit	1116	2134	1500	300	2080
Z2000A11	2000 lit	1116	2634	2000	300	2580
Z2450A11	2450 lit	1116	3134	2500	300	3080
Z2950A11	2950 lit	1116	3634	3000	300	3580
Z3950A11	3950 lit	1116	4634	4000	300	4580
Z2000A13	2000 lit	1275	2245	1500	400	2191
Z2600A13	2600 lit	1275	2745	2000	400	2691
Z3250A13	3250 lit	1275	3245	2500	400	3190
Z3900A13	3900 lit	1275	3745	3000	400	3690
Z5150A13	5150 lit	1275	4745	4000	400	4690
Z2400A14	2400 lit	1402	2250	1500	400	2221
Z3200A14	3200 lit	1402	2750	2000	400	2696
Z3950A14	3950 lit	1402	3250	2500	400	3196
Z4700A14	4700 lit	1402	3750	3000	400	3695
Z6250A14	6250 lit	1402	4750	4000	400	4695
Z4150A16	4150 lit	1593	2764	2000	400	2730
Z5100A16	5100 lit	1593	3264	2500	400	3209
Z6100A16	6100 lit	1593	3764	3000	400	3708
Z8100A16	8100 lit	1593	4764	4000	400	4708
Z10100A16	10100 lit	1593	5764	5000	400	5708
Z5000A18	5000 lit	1752	2775	2000	400	2786
Z6200A18	6200 lit	1752	3275	2500	400	3232
Z7450A18	7450 lit	1752	3775	3000	400	3719
Z9850A18	9850 lit	1752	4775	4000	400	4719
Z12200A18	12200 lit	1752	5775	5000	400	5719
Z6000A19	6000 lit	1911	2938	2000	500	2922
Z7450A19	7450 lit	1911	3438	2500	500	3382
Z8850A19	8850 lit	1911	3938	3000	500	3881
Z11700A19	11700 lit	1911	4938	4000	500	4881
Z14600A19	14600 lit	1911	5938	5000	500	5881
Z8750A21	8750 lit	2071	3455	2500	500	3533
Z10400A21	10400 lit	2071	3955	3000	500	3969
Z13800A21	13800 lit	2071	4955	4000	500	4905
Z17100A21	17100 lit	2071	5955	5000	500	5903
Z20500A21	20500 lit	2071	6955	6000	500	6903
Z10200A22	10200 lit	2230	3473	2500	500	3591
Z12200A22	12200 lit	2230	3973	3000	500	4021
Z16100A22	16100 lit	2230	4973	4000	500	4921
Z20000A22	20000 lit	2230	5973	5000	500	5919
Z23900A22	23900 lit	2230	6973	6000	500	6919
Z15300A25	15300 lit	2501	4002	3000	500	4143
Z20200A25	20200 lit	2501	5002	4000	500	5022
Z25100A25	25100 lit	2501	6002	5000	500	5955
Z30000A25	30000 lit	2501	7002	6000	500	6953
Z34900A25	34900 lit	2501	8002	7000	500	7952
Z39800A25	39800 lit	2501	9002	8000	500	8951
