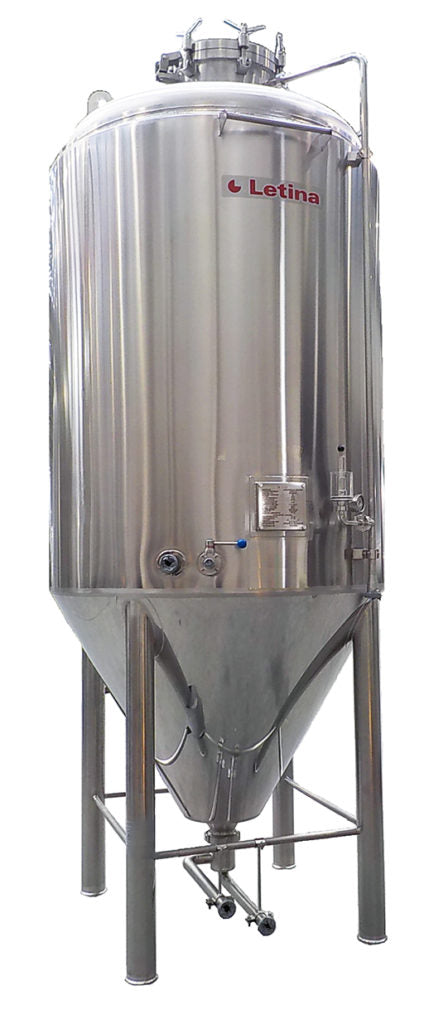

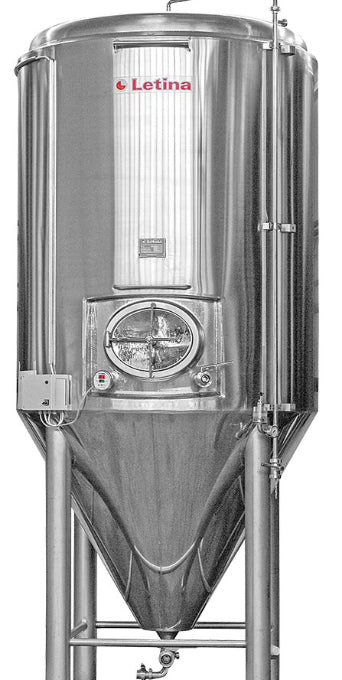

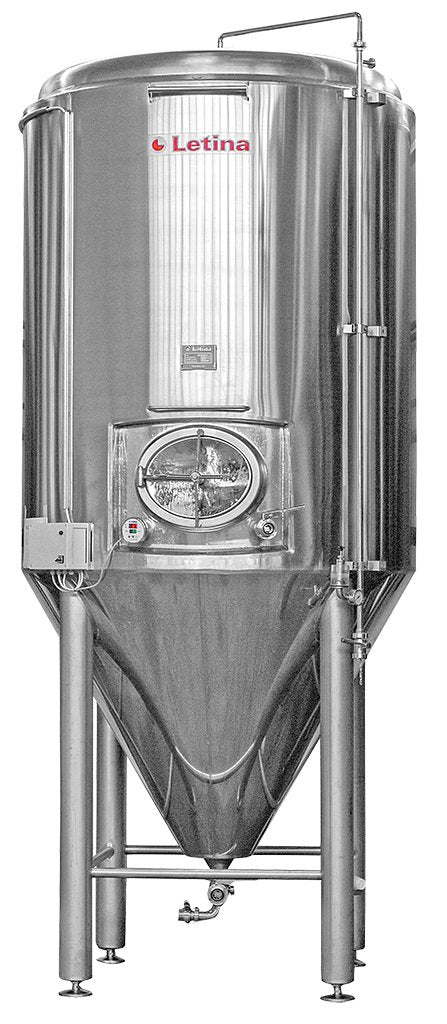

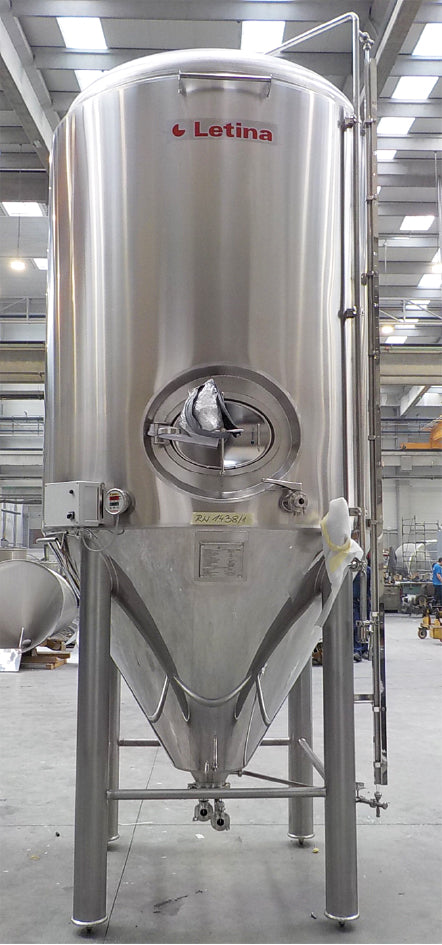

BEER FERMENTATION TANK: Conical tank for fermentation of wort, maturation and sedimentation of beer. With built-in carbonation fitting, it can be used like bright beer tank. Beside standard version at 2.5 bar, there are models for atmospheric fermentation, or models at 3 bar pressure. Interior surface of the tank is polished on Ra²0.8µm, what provides effective cleaning and complete tank sanitation. Tank is equipped with safety and vacuum valves for maximum security during usage. It is equipped with big cooling jacket surface on coat and bottom, with possibility of separate on/off switching. Polyurethane foam insulation with the different kinds of thermoregulation ensures perfect temperature control during fermentation and brightening.
| TANK TYPE | FILLING VOLUME |
MAXIMUM VOLUME |

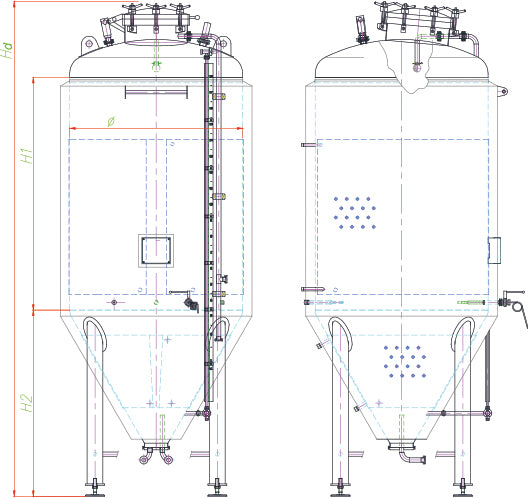

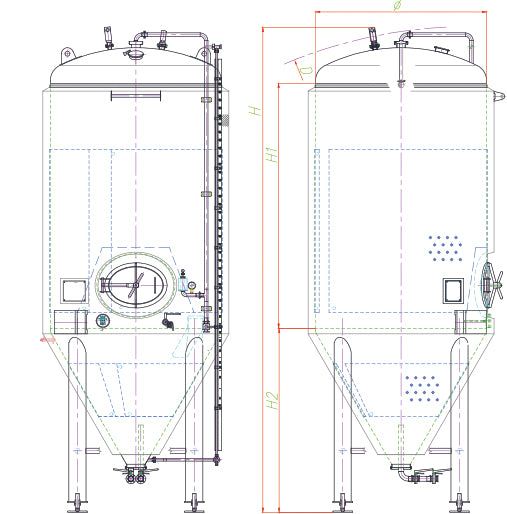

Ø | H | H1 | H2 | D |
|---|---|---|---|---|---|---|---|
| ZB500A9 | 500 lit | 670 lit | 800 | 2350 | 1000 | 1000 | 2320 |
| ZB1000A11 | 1000 lit | 1350 lit | 957 | 3057 | 1500 | 1200 | 2985 |
| ZB1500A12 | 1500 lit | 1940 lit | 1116 | 3100 | 1500 | 1200 | 3039 |
| ZB2000A14 | 2000 lit | 2620 lit | 1275 | 3330 | 1500 | 1400 | 3277 |
| ZB3000A15 | 3000 lit | 4000 lit | 1400 | 3963 | 2000 | 1500 | 3884 |
| ZB4000A17 | 4000 lit | 5300 lit | 1600 | 4304 | 2000 | 1800 | 4233 |
| ZB5000A19 | 5000 lit | 6650 lit | 1750 | 4430 | 2000 | 1900 | 4380 |
| ZB6000A19 | 6000 lit | 7846 lit | 1750 | 4930 | 2500 | 1900 | 4871 |
| ZB8000A20 | 8000 lit | 10250 lit | 1911 | 5225 | 2750 | 1900 | 5164 |
| ZB10000A22 | 10000 lit | 13100 lit | 2071 | 5700 | 3000 | 2100 | 5711 |
| ZB12000A23 | 12000 lit | 15000 lit | 2200 | 5950 | 3000 | 2250 | 5970 |
| ZB16000A23 | 16000 lit | 20650 lit | 2200 | 7450 | 4500 | 2250 | 7420 |
