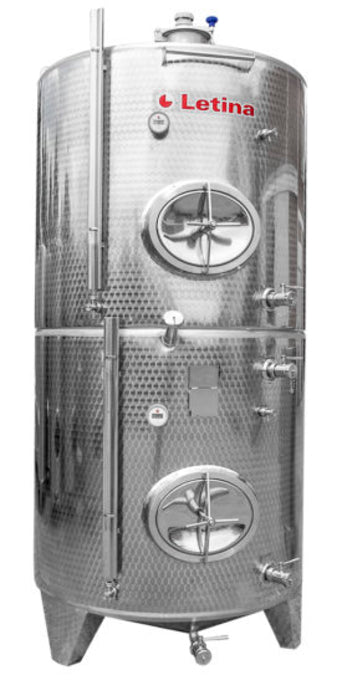

ZK TANK: closed storey tank

CLOSED STOREY TANK with two or more chambers is used for fermentation and storage of wine and other alimentary liquids. Closed storey tank ensures optimal usage of the cellar space. The high quality materials with big thickness ensure stability during a long professional usage of the tank. All valves on the tank are attached with fittings and gaskets which simplifies the removal during the cleaning.

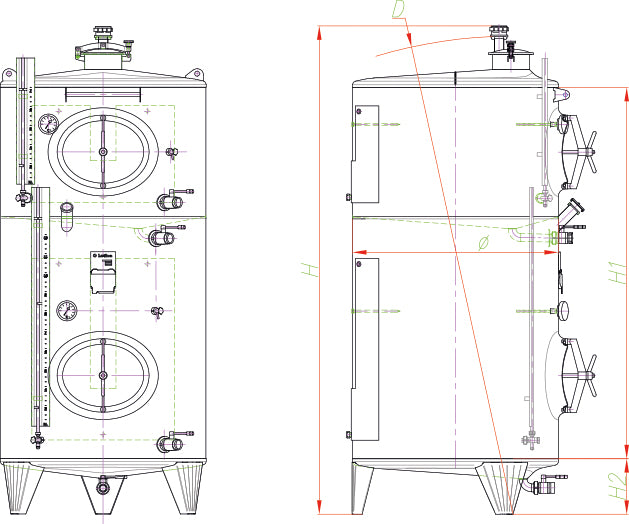

TANK TYPE	VOLUME	Ø	H	H1	H2	D
ZK500A8	500 lit	797	1611	1000	300	1560
ZK600A8	600 lit	797	1861	1250	300	1810
ZK750A8	750 lit	797	2111	1500	300	2060
ZK1000A8	1000 lit	797	2611	2000	300	2560
ZK1250A8	1250 lit	797	3111	2500	300	3060
ZK1500A8	1500 lit	797	3611	3000	300	3560
ZK750A10	750 lit	956	1622	1000	300	1570
ZK900A10	900 lit	956	1872	1250	300	1820
ZK1040A10	1040 lit	956	2022	1400	300	1970
ZK1100A10	1100 lit	956	2122	1500	300	2070
ZK1450A10	1450 lit	956	2622	2000	300	2570
ZK1800A10	1800 lit	956	3122	2500	300	3070
ZK2150A10	2150 lit	956	3622	3000	300	3570
ZK1250A11	1250 lit	1116	1884	1250	300	1830
ZK1500A11	1500 lit	1116	2134	1500	300	2080
ZK2000A11	2000 lit	1116	2634	2000	300	2580
ZK2450A11	2450 lit	1116	3134	2500	300	3080
ZK2950A11	2950 lit	1116	3634	3000	300	3580
ZK3950A11	3950 lit	1116	4634	4000	300	4580
ZK2000A13	2000 lit	1275	2245	1500	400	2191
ZK2600A13	2600 lit	1275	2745	2000	400	2691
ZK3250A13	3250 lit	1275	3245	2500	400	3190
ZK3900A13	3900 lit	1275	3745	3000	400	3690
ZK5150A13	5150 lit	1275	4745	4000	400	4690
ZK2400A14	2400 lit	1402	2250	1500	400	2221
ZK3200A14	3200 lit	1402	2750	2000	400	2696
ZK3950A14	3950 lit	1402	3250	2500	400	3196
ZK4700A14	4700 lit	1402	3750	3000	400	3695
ZK6250A14	6250 lit	1402	4750	4000	400	4695
ZK4150A16	4150 lit	1593	2764	2000	400	2730
ZK5100A16	5100 lit	1593	3264	2500	400	3209
ZK6100A16	6100 lit	1593	3764	3000	400	3708
ZK8100A16	8100 lit	1593	4764	4000	400	4708
ZK10100A16	10100 lit	1593	5764	5000	400	5708
ZK5000A18	5000 lit	1752	2775	2000	400	2786
ZK6200A18	6200 lit	1752	3275	2500	400	3232
ZK7450A18	7450 lit	1752	3775	3000	400	3719
ZK9850A18	9850 lit	1752	4775	4000	400	4719
ZK12200A18	12200 lit	1752	5775	5000	400	5719
ZK6000A19	6000 lit	1911	2938	2000	500	2922
ZK7450A19	7450 lit	1911	3438	2500	500	3382
ZK8850A19	8850 lit	1911	3938	3000	500	3881
ZK11700A19	11700 lit	1911	4938	4000	500	4881
ZK14600A19	14600 lit	1911	5938	5000	500	5881
ZK8750A21	8750 lit	2071	3455	2500	500	3533
ZK10400A21	10400 lit	2071	3955	3000	500	3969
ZK13800A21	13800 lit	2071	4955	4000	500	4905
ZK17100A21	17100 lit	2071	5955	5000	500	5903
ZK20500A21	20500 lit	2071	6955	6000	500	6903
ZK10200A22	10200 lit	2230	3473	2500	500	3591
ZK12200A22	12200 lit	2230	3973	3000	500	4021
ZK16100A22	16100 lit	2230	4973	4000	500	4921
ZK20000A22	20000 lit	2230	5973	5000	500	5919
ZK23900A22	23900 lit	2230	6973	6000	500	6919
ZK15300A25	15300 lit	2501	4002	3000	500	4143
ZK20200A25	20200 lit	2501	5002	4000	500	5022
ZK25100A25	25100 lit	2501	6002	5000	500	5955
ZK30000A25	30000 lit	2501	7002	6000	500	6953
ZK34900A25	34900 lit	2501	8002	7000	500	7952
ZK39800A25	39800 lit	2501	9002	8000	500	8951
